MUNRO Auto Driver
The safest single handed hammer and combined downforce operation,and most efficient machine on the market
- Automatic Driver
- Automatic Digger
- 15 degrees tilt
- Augers to 305 mm drilling depth to 1200 mm
- Uses the weight of the tractor to increase efficiency
- Sideshift Available
- The safest and most efficient machine on the market
- Handles all types of posts with ease
The MUNRO Auto Driver is the machine of choice for contractors, vineyard operators and government departments.Capable of installing posts up to 8ft (Standard) and 11ft (TeleSett), the AutoDriver combines, in one machine, a fast action rock-breaker style hammer that does not leave the top of the post when driving and an hydraulic auger for drilling pilot holes.
The AutoDriver has a patented downforce system that can add a percentage of the tractor mass to the driver, making it the most efficient machine on the market. Without this downforce system, these types of machines lose most of their efficiency trying to drive the machine up instead of the post down.
The AutoDriver driving function is a one handed operation allowing operators to adjust the machines tilt whilst driving to ensure a straight post. The auger is hydraulically engaged and stowed and can have downforce applied.
The system is easy to operate. Its speed and accuracy of setting makes it the most efficient and value-for-money machine on the market.
Combines, in one machine, a fast action earth auger for drilling a pilot hole, with a powerful post driver for setting a tight post every time.
Handles all types of posts with ease
- Steel
- Star
- Treated pine
- Concrete
- Split
- Square
- Round
- Railway sleepers
- Powerful, Flexible, Tough
The safest and most efficient machine on the market
- Automatic percussion head hammer does not leave the top of the post
- Single handed hammer and combined downforce operation
- Hydraulically engaged auger
- Hydraulic reversible auger drive with a wide range of augers for different post sizes and ground conditions.
- Drills to 1200mm (4′)
- Hydraulic tilt 12.5 Deg (Left, Right, Forward, Backwards), combined with a wide base and two separate stability pads allows safe and efficient operation on hills or sloping ground.
- Precise ergonomically located controls allow posts to be set quickly and accurately without fuss.
- Has low overall height but still copes with normal posts
- Firm and Fast post setting, with feather touch controls
- Three Models Available, 730, 900 and 1300 Joules
- Comes in telescopic version for taller posts
- Sideshift options - either side or both sides (Double Sideshift)
Features
| Driver | Automatic Driver |
|---|---|
| Digger | Automatic Digger |
| Power | Hydraulic |
| Hydraulic Tilt | 15 degrees |
| Drilling | Augers to 305 mm drilling depth to 1200 mm |
| Weight | Uses weight of tractor increasing efficiency |
| Oil Flow | 35 to 90lpm |
| Models Available | 730, 900, 1300 |
| Warranty | 6 Months |
| Safety | The safest and most efficient machine on the market |
Compatibility
| Post Types | Steel, Star, Treated Pine, Concrete, Split, Square, Round, Railway Sleepers |
|---|
Spare Parts
| Spare Parts | Online Spare Parts orders receive a 5% discount (SPARE PARTS) |
|---|

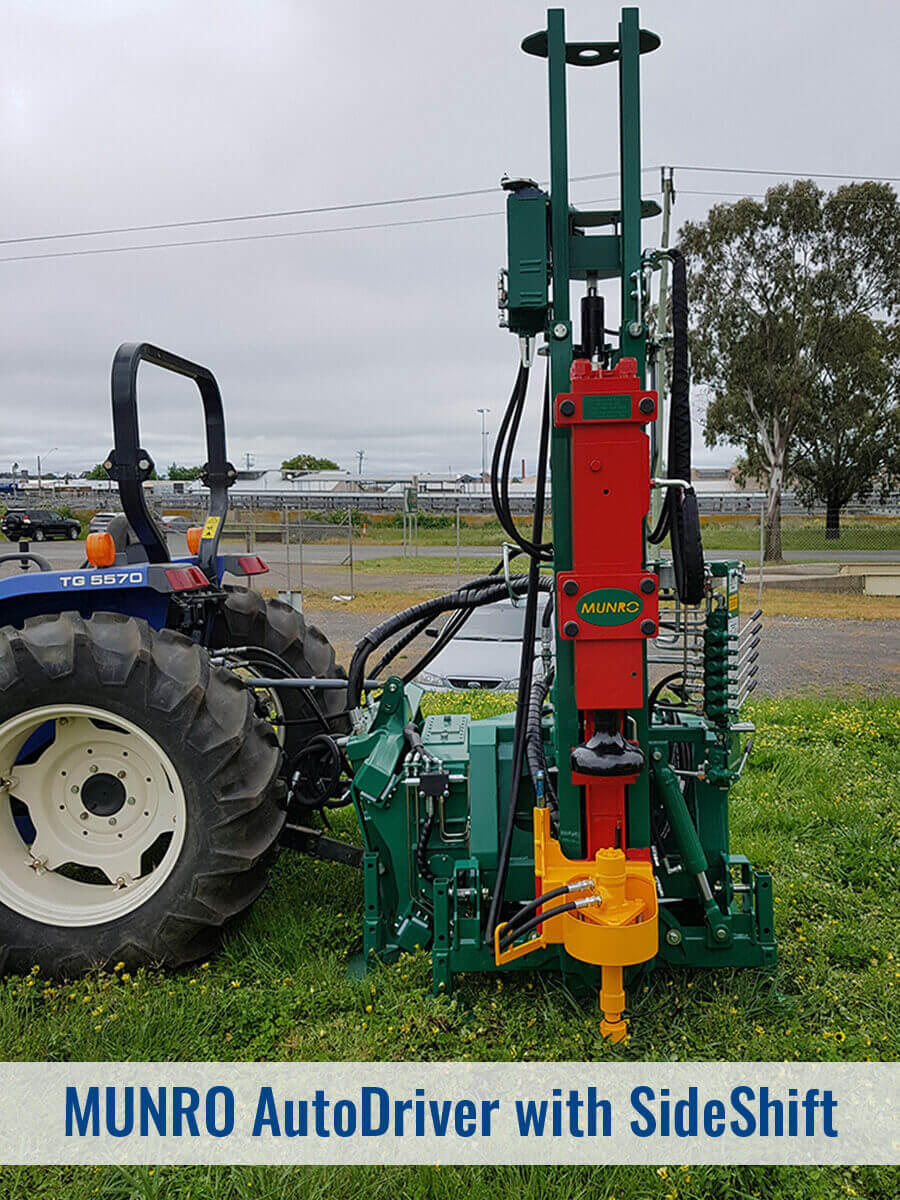

The SIDE SHIFT operates outside the wheel line of the tractor, after extending the centre-line of the hammer 1.4m off the centre-line of the tractor.
The SIDE SHIFT is easy to operate and ensures efficient and fast work that can be performed with great accuracy.
Allows mounting of the Post Sett sideways, with respect to the tractor. The tractor can then be driven straight along one side of the post line with the Post Sett retracted out of the way of posts and wires.
The Post Sett is moved hydraulically to its extended position completely clear of the tractor wheels for fast and accurate inline setting..
The MUNRO SIDE SHIFT coupled with a MUNRO AUTODRIVER is the most capable and efficient fence post setting solution available today.
The perfect application for vineyard fencing and contract work, the time-saving SIDE SHIFT allows for the tractor to be driven along side the fence line, making post alignment easy, accurate and fast.
The SIDE SHIFT operates outside the wheel line of the tractor, after extending the centre-line of the hammer 1.4m off the centre-line of the tractor. The SIDE SHIFT is easy to operate and ensures efficient and fast work that can be performed with great accuracy. SIDE SHIFT allows mounting of the Post Sett sideways, with respect to the tractor.
The tractor can then be driven straight along one side of the post line with the Post Sett retracted out of the way of posts and wires. The Post Sett is moved hydraulically to its extended position completely clear of the tractor wheels for fast and accurate inline setting.
TELESCOPIC FOR HIGH FENCING WORK – Capable of installing posts up to 11ft.
The machine for those in need of specialist tall fencing and post work. All the features of the MULTI-SETT machine, PLUS the ability to drive extra long posts and to drive them deep.
In its retracted form – no taller than a MULTI-SETT – this added flexibility is gained at no sacrifice in power, rigidity or stability. The longer post is driven with the same ease and accuracy as the standard machine. The mast height setting is infinitely variable throughout it’s movement range and can be adjusted at any time during operation by the operation of a single lever. When set, it is hydraulically locked – there can be no creep or jam while working in extended mode.
Large stabilising pads assure a firm base for the machine in any conditions.
Suits tractors of 40kW (60HP) and over, due to the extra weight, and stability.
The control panel is an enlarged version of the MULTI-SETT with the same ergonomic approach to lever movement and control.
Labor saving, all weather system is easy to operate. Its speed and accuracy of setting make it extremely cost effective.
Accessories/Options available for the MUNRO AutoDriver:
- TAD System (Tractor Added Downforce, for tractors to deliver full energy)
- Power Pack Kit with Oil Cooler (Drive off the PTO Shaft)
For tractors which do not have suitable remote hydraulics, an hydraulic Power Pack is available which uses the tractor’s PTO shaft. - Side Shift (Rear Mounted Hydraulic)
- Double Side Shift (Operates both sides)
- Guide Rings (50mm – 300mm)
- Guide Ring Carrier (up to four extra rings)
- FenceMate hydraulic wood borer with 5/8 drill chuck
- Skid steer attachment plate
- FEL Mounted Wire Winder with Euro Hitch
- Telescopic version for taller posts
- Low Flow Hydraulic Auger Motors
Smaller motors are available for tractor remote oil supplies lower than 23lpm (5gpm) at 100bar (1500psi). The smaller motors maintain the correct auger revolutions at normal tractor engine speeds, however, auger driving torque is reduced. - Extra Heavy Dolly
Additional dolly weight is available in increments of 50kg (100lb) up to 100kg (200lb), to assist with the near impossible driving job. (100kg only for Multi-Sett). - Online Spare Parts orders receive a 5% discount (SPARE PARTS)
- Augers and Cutters are available in: Auger & Standard Cutter, Standard Cutter, and Gold Cutter
Auger cutters are supplied with carbide tipped cutting faces.
Cutters are also available with a central rock cutting bit.
A special rock drilling auger of 45mm (1-3/4″) diameter is also available for regular drilling of rock.
Standard earth auger diameters available are: 70, 95, 127, 152, 216, 254, 305, 365(mm); (2-3/4, 3-/4, 5, 6, 8-1/2, 10, 12 (inches)).
All augers will drill to a minimum depth of 1140mm (3’9″). - Special Purpose Machines
Specialised adaption’s for specific applications can be designed
The design of the hydraulics provides inherent fail safe features. If a control lever is released, the action it controls stops immediately.
A series of guards prevents the operator from touching moving or dangerous parts of the machine during operation without compromising effective operation.
Safety is of vital concern to us, and must be the primary focus of the operator also.
It is VITAL, that you familiarise yourself with the owner’s manual, and the safety labels on the machine.
- Do not operate the machine without all guards in place.
- Do not use the digger if the auger is worn or damaged in any way.
- Do not operate the machine without protective eyewear, headgear and hearing protection.
- Keep bystanders well away from the machine during operation.
- Use only the auger retaining pin supplied. Never replace it with another bolt or pin.
