AD Downforce

AD Downforce Cylinder
AD Downforce
AD Downforce
AD Downforce Cylinder

Individual Spare Parts

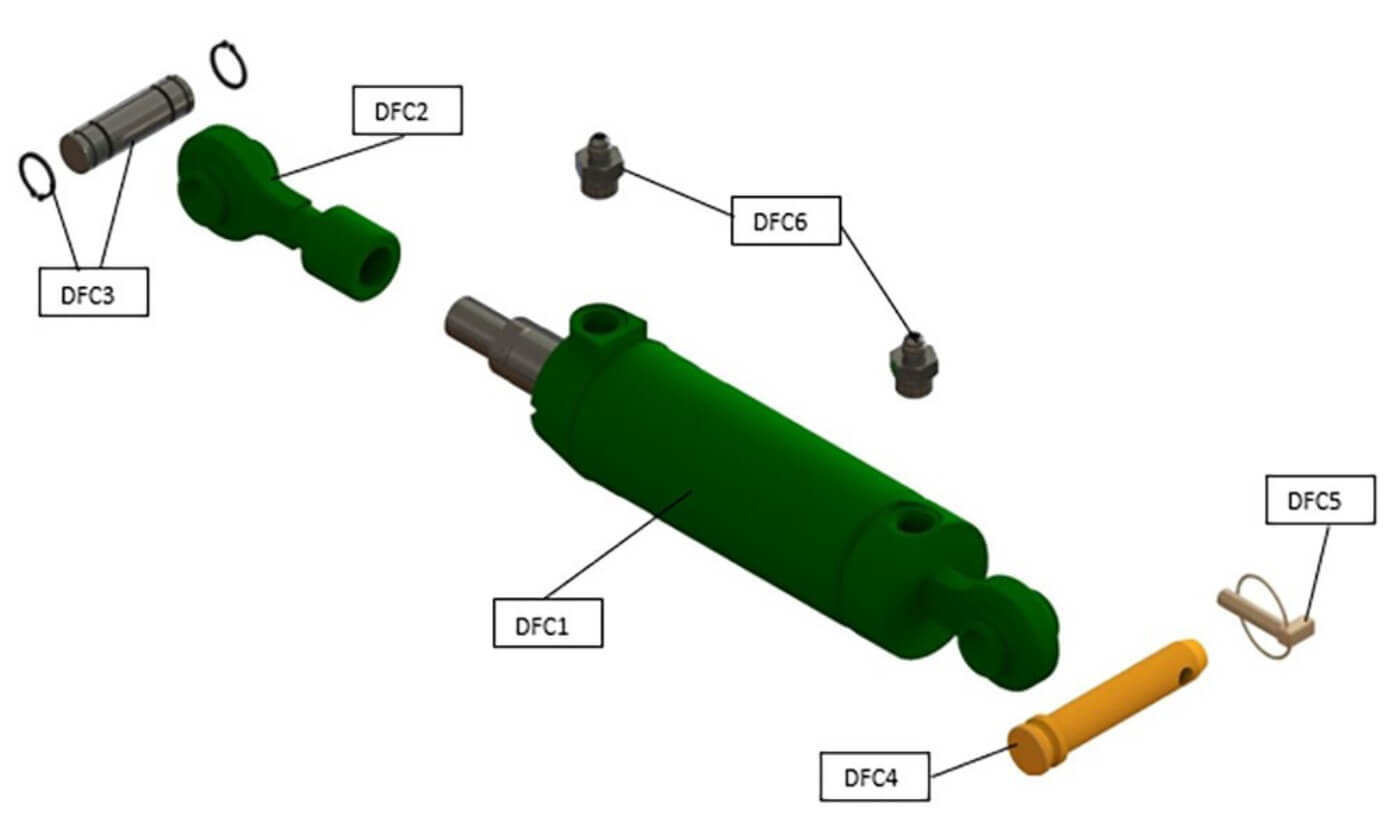

Notice: Ref is used to identiy the part from the exploded view, when contacting Munro Engineers use Part Number.
Downforce Cylinder Assembly
Part No.: ADC-HYD-A21-C
$495.00 ex
Downforce Y Arm Assembly
Part No.: ADC-DF-A04-A
$2,650.00 ex
DF1
Y Frame Main Arm Weldment
Part No.: ADC-DF-W05-A
$399.00 ex
DF2
downforce Pivot Arm Weldment
Part No.: ADC-DF-W06-C
$342.00 ex
DF3
Sliding Arm Weldment
Part No.: ADC-DF-W08-A
$114.00 ex
DF4
M10 X 1.5 X 75mm Bolt
Part No.: BLTM10075
$3.33 ex
DF5
M10X1.5 Nyloc Nut
Part No.: NUTM10NYLC
$1.14 ex
DF6
Downforce Pivot Pin
Part No.: ADC-DF-P27-C
$17.58 ex
DF7
25mm Heavy Duty Ext Circlip
Part No.: EXTCCLIP25HD
$2.09 ex
DF8
Hex bolt- m12x 1.75x 50mm
Part No.: BLTM12050
$2.38 ex
DF9
M12X1.75 NYLOC NUT
Part No.: NUTM12NYLC
$0.65 ex
DF10
Arm Lock Plate
Part No.: ADC-DF-P28-B
$28.50 ex
DF11
Lower Linkage Arm Side Plate
Part No.: ADC-DF-P19-A
$12.45 ex
DF12
Linkage Arm Yoke Weldment
Part No.: ADC-DF-W09-C
$28.00 ex
DF13
M12 X 1.75 X 75mm
Part No.: BLTM12075
$1.90 ex
DF14
M16X2 NYLOC NUT
Part No.: NUTM16NYLC
$1.43 ex
DF15
Downforce Cylinder Shear Pin
Part No.: ADC-DF-P33-C
$17.50 ex
DF16
Downforce Cylinder Extension Weldment
Part No.: ADC-HYD-W26-A
$125.00 ex
DF17
Downforce Cylinder Weldment
Part No.: ADC-HYD-W21-A
$370.00 ex
